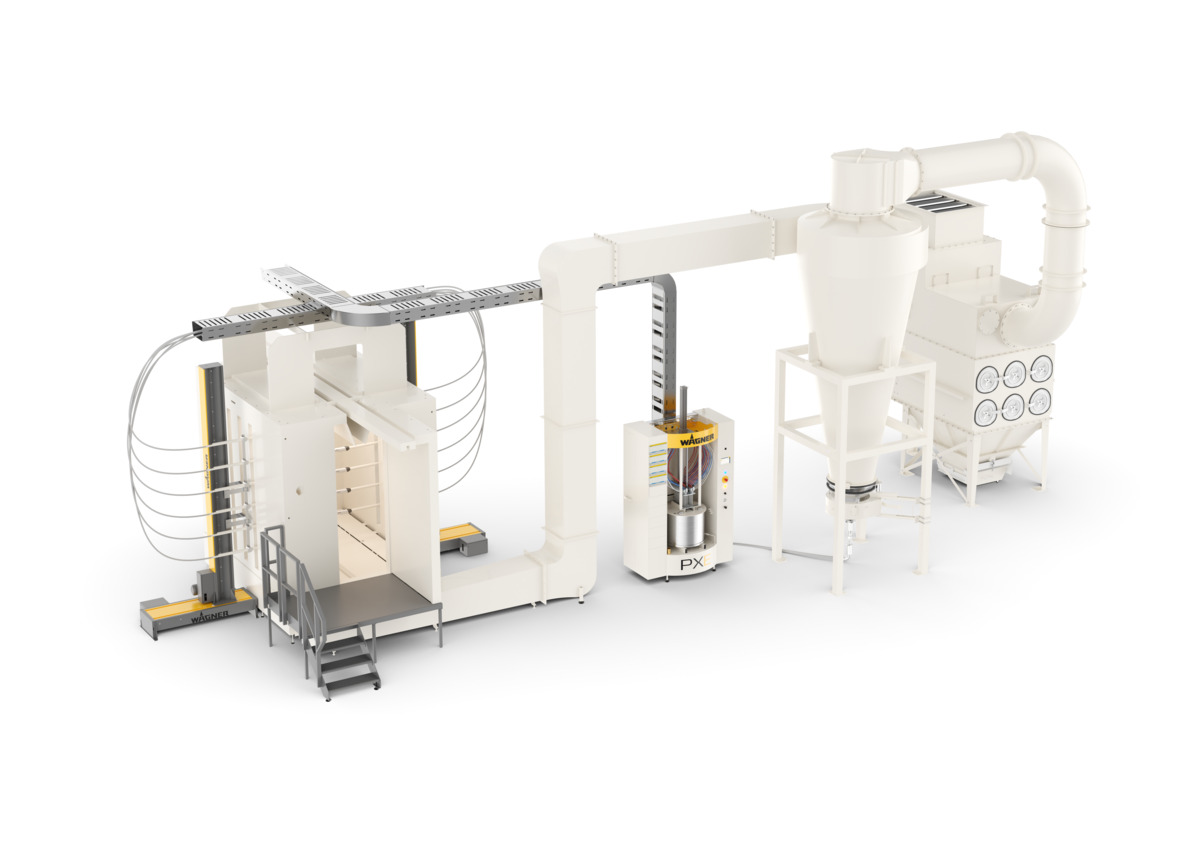

The E-Line system is the entry-level system for automatic powder coating systems. It is particularly space-saving and offers high process reliability with fast color change.
The E-Line System is the entry-level solution into automatic powder coating systems. It includes all required components to realize an automated and reliable powder coating process. Using proven WAGNER application technology, E-Line systems offer excellent coating quality, quick color changes and high process reliability. The compact design of the system enables space-saving integration.
Further information on our complete powder systems can be found here.
Above-average application results thanks to robust and powerful PEA-X1 automatic guns, high-precision EPG-S2 gun control units with active air volume control, and motion systems with maximum precision and repeatability.
Coating-neutral air flow for higher application efficiency due to special PVC booth design with double-sided exhaust system.
Particular compact system design possible for minimal plant footprint.
Automatic activation/deactivation of the powder output during the coating process by the intelligent gap and height control.
Efficient operation of the components (powder center, motion system, application, booth, filter) through all-in-one system control integrated in the powder center.
High energy efficiency of the recovery system thanks to the patented WAGNER EEP concept. By using a special design for the suction tubes and the monocyclone, the overall energy consumption of the system can be minimized.
| Suction power | 13,000-17,000 Nm³/h |
|---|---|
| Input power filter unit | 18.5-22 kW |
| Control Platform | eXpertE |
| System Control | Yes |
| User Interface | 7" touchscreen (multi-touch) |
| Feeding Technology | Injector |
