The E-Line Plus complete system extends the functionalities of the E-Line system and is suitable for increased quality and productivity requirements. It is characterized, for example, by more convenient system operation and optional fresh powder dosing.
The E-Line Plus powder coating system enhances the functional features of E-Line systems. The 15.6” touchscreen integrated into the powder center and the option of an additional external touchscreen enables an easy and comfortable operation of the system. The powerful all-in-one system control WICOS offers additional automation functions as well as light barriers with high resolution for exact positioning and activation of the guns. Thereby powder consumption can be minimized. Loss of productivity can be avoided by choosing the fresh powder supply option from carton box or BigBag.
Further information on our complete powder systems can be found here.
Above-average application results thanks to robust and powerful PEA-X1 automatic guns, high-precision EPG-S2 gun control units with active air volume control, and motion systems with maximum precision and repeatability.
Coating-neutral air flow for higher application efficiency due to special PVC booth design with double-sided exhaust system.
Automatic activation/deactivation of the powder output during the coating process by the intelligent gap and height control.
Comfortable WICOS system control (powder center, motion system, application, booth, filter) with 15.6" touchscreen integrated in the powder center offers additional standardized data interfaces, automation functions and particularly easy handling of the extended range of functions compared to the E-Line system.
High energy efficiency of the recovery system thanks to the patented WAGNER EEP concept. By using a special design for the suction tubes and the monocyclone, the overall energy consumption of the system can be minimized.
Reduced system energy consumption through the Energy Efficiency Package Plus, which automatically pauses or throttles operation of system components in component gaps.
The guns are depth-controlled during the coating process to always ensure the optimum distance between the coating object and the guns.
Particular compact system design possible for minimal plant footprint.
| Suction power | 13,000-17,000 Nm³/h |
|---|---|
| Input power filter unit | 18.5-22 kW |
| Control Platform | WICOS |
| System Control | Yes |
| User Interface | 15.6" touchscreen (multi-touch) |
| Additional user interfaces | 2. Touchscreen (optional) |
| IoT platform | COATIFY |
| Feeding Technology | Injector |
| Material Preperation | fluidization, Vibration |

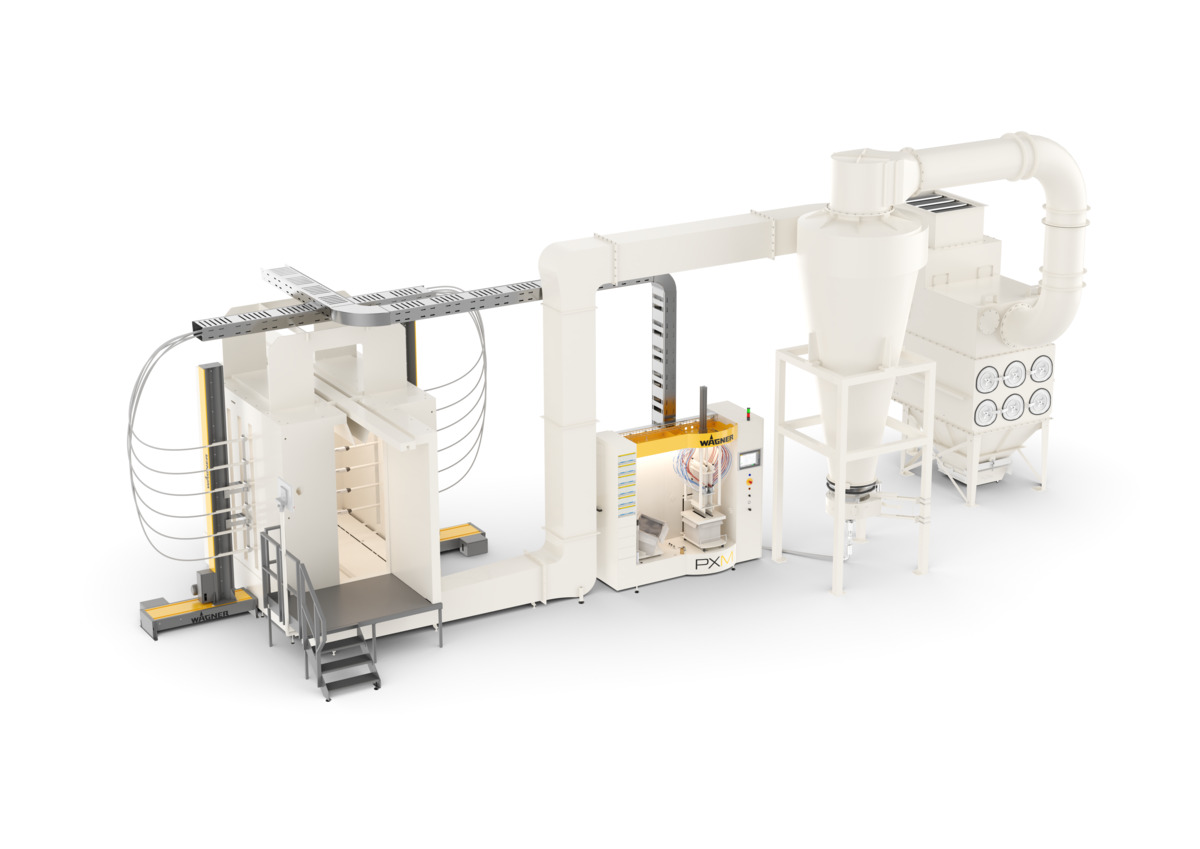

Powder complete system
