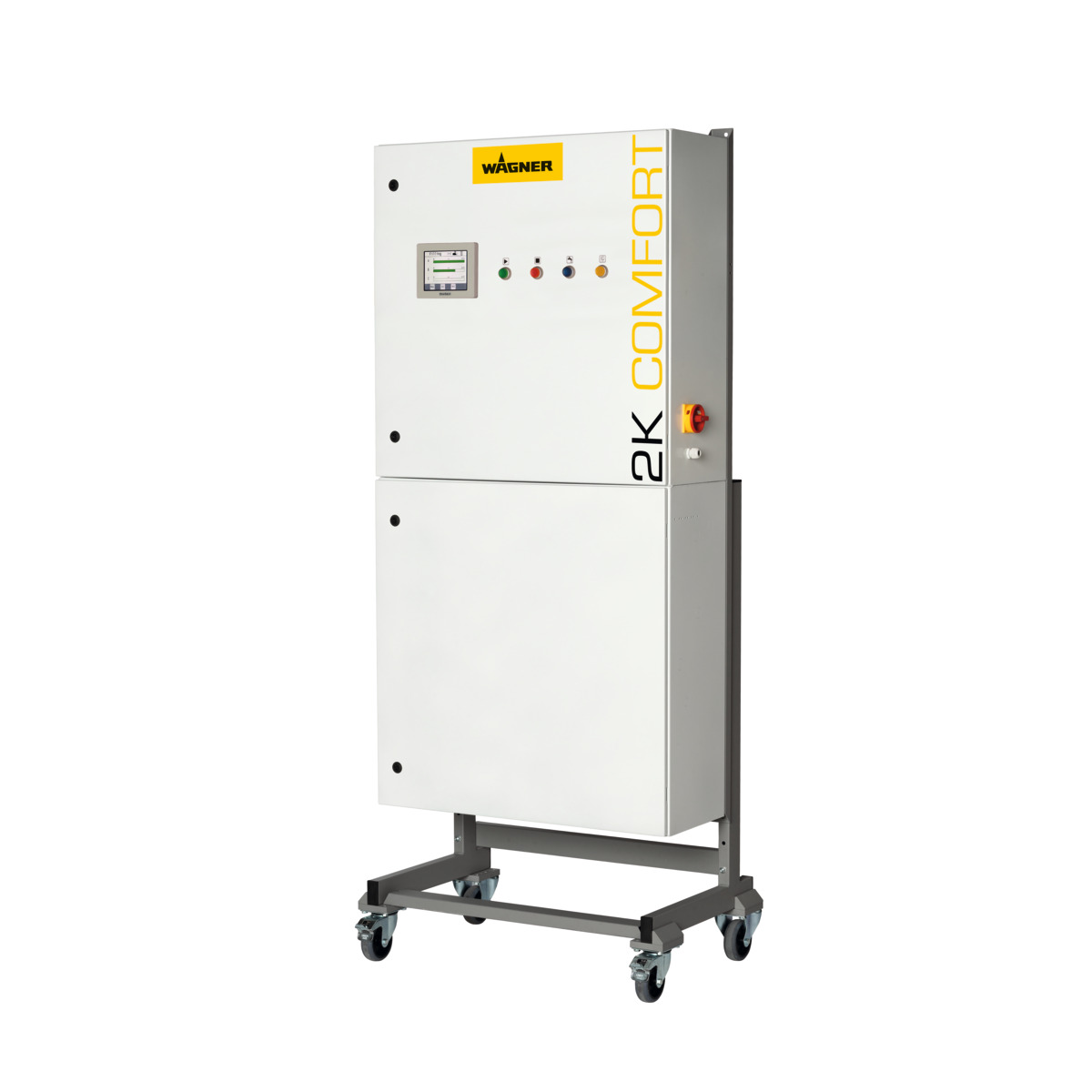

Mixing and dosing unit for multi-color applications

2K Comfort

Name: 2K Comfort
Brand: WAGNER

Mixing and dosing unit for multi-color applications

The 2K COMFORT is an electronic mixing and dosing system for multi-color applications with fast color change.

Overview

Electronic mixing system for up to 25 colors and four components. Fluidpart mounted in closed cabinet with room for extensions.

Benefits

Flexibility

Building the fluid part in a closed cabinet with enough space allows for the use of different measuring systems, the possibility to mix up to four components and connect up to 25 colors. Extending the unit is, for example with further colors, is also possible.

Easy handling

Intuitive menu navigation via color display and four control elements - start, stop, flush and recipe change.

High reliability

The exact measurement of the material flows via gear flow meter, stroke sensor or Coriolis flow meter and the precise dosing with the WAGNER injection valves ensure constant mixing ratios and high homogenization even with the smallest mixing ratios.

Technical data

Technical data
Application area	Metal coating, Plastic coating, Wood coating
Application technique	Airspray, Airless, AirCoat
Processable materials	Water-borne, Solvent-borne, Abrasive, shear sensitive, sensitive to moisture
Material Wetted Parts	Stainless steel, Carbide
Material outlet	M G 1/4''
Max. Material Pressure	325 bar
Input frequency	50-60 Hz
Input voltage	115-230 V
Max. Delivery Rate in Operation	7 l/min
Material pH value	9-3.5 pH
Material temperature	5-60 °C
Material viscosity	20-2,200 mPas
Mixing Accuracy	1 %
Mixing ratio	0.1-50 :1

Certifications

Customer references

Examples from various industrial sectors show you how our products and solutions for liquid coating are used in practice.

Learn more

Downloads

Brochure 2K Comfort_EN

PDF | 1,98 MB

Press release 2K COMFORT

PDF | 87,73 KB
