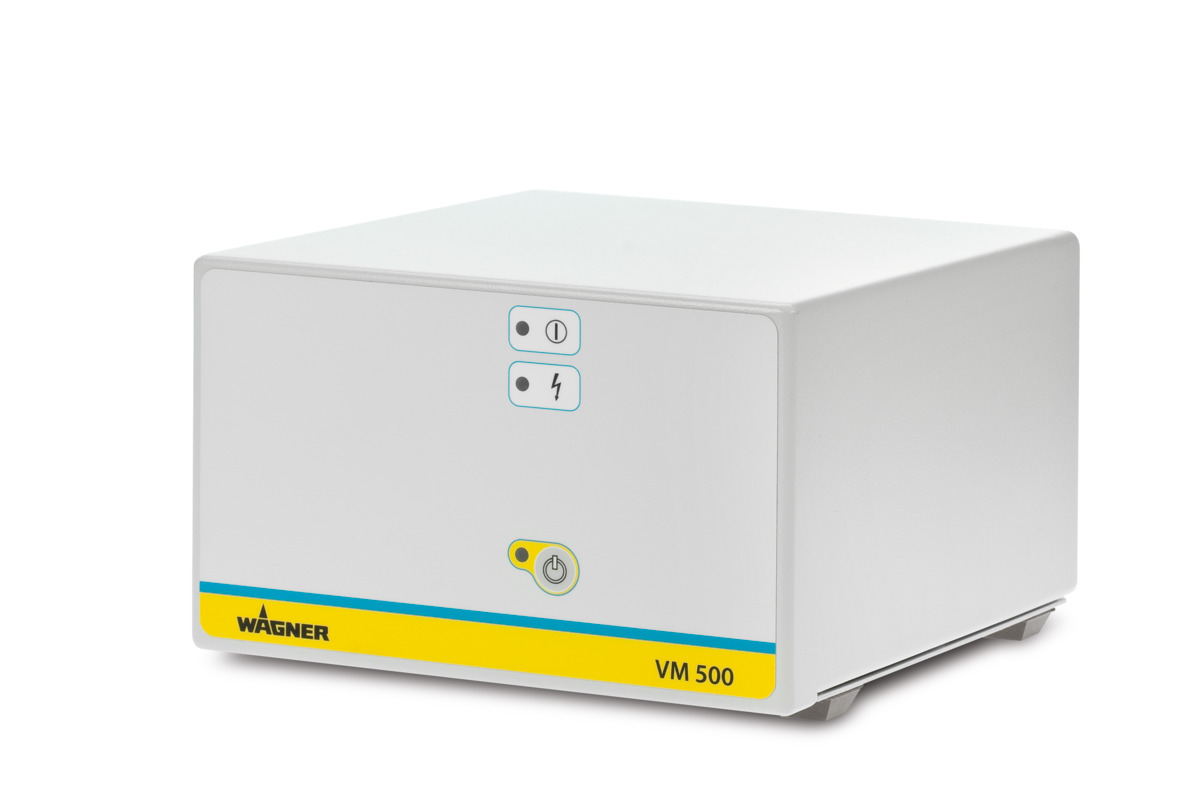

Control unit for electrostatic manual guns GM 5000EA & GM 5000EAC

VM 500

Name: VM 500
Brand: WAGNER

Control unit for electrostatic manual guns GM 5000EA & GM 5000EAC

The control unit is used to intelligently control the GM 5000 manual electrostatic guns.

Overview

Control unit for supplying the GM 5000EA and GM 5000EAC electrostatic manual guns. 80 kV with monitoring function and safety shutdown.

Benefits

Atex zone 2 compliant

The WAGNER electrostatic control units are Atex Zone 2 compliant and can therefore be placed much closer to the workplace. In this way, the correct parameters can be set and optimized quickly and directly.

Simple recipe selection

Three recipes for nominal voltage and current can be saved. They can be activated directly from the gun or control unit. This activation of pre-defined settings enables the painter to quickly select his preferred working conditions.

Setting of service intervals

Preventive maintenance of the spray gun is recommended for a continuous optimal spray performance. The spraying time of the connected gun can be monitored and a service interval can be set.

High safety

For maximum safety of the coater, the grounding of the gun is monitored by the control unit. If the grounding is interrupted, the high voltage is switched off.

Easy handling

The extremely easy and simple adjustment of all parameters via a single button allows settings to be changed at high speed.

Technical data

Technical data
Dimensions	230 x 180 x 120 mm
Weight	2.3 kg
Protection class	IP 54
Gun Spray Current	100 µA
Gun Spray Voltage	80 kV
Input frequency	50-60 Hz
Input voltage	115-230 V
Operating temperature	5-40 °C
