The IPS is an integrated complete solution that achieves consistently high coating results over a much longer period of time than conventional powder centers on the market. Powder preparation, feeding and dosing are housed in a closed system that carries out color changes automatically at the touch of a button.
The IPS is a powerful, highly integrated and fully automated powder supply and color change system and enables increased productivity, consistently high quality, simple operation and consistently short color change times. It has a double fresh powder supply, powder preparation by ultrasonic sieving, vibration and fluidization, as well as high-precision powder dosing elements for powder feed to the guns. Integrated sensors such as weight, flow, pressure and level sensors as well as the fully automatic color change offer high efficiency and productivity. The SFT ("Smart Feeding Technology") feeding concept generates a constant powder feed, even for high output rates over long periods of time. The IPS is embedded in a complete system with WICOS.Plus control.
Discover further advantages and details of our IPS coating center here.
Integrated sensors such as weight, flow, pressure and level sensors, as well as fully automatic color change, offer high cost-effectiveness and productivity.
The SFT feeding concept generates a constant powder feed even for high output rates over a long period of time.
The IPS is embedded in a complete system with central operation. The intuitively operable and flexibly placeable touch screen allows a quick training even with frequent personnel changes. The simple user guidance increases productivity.

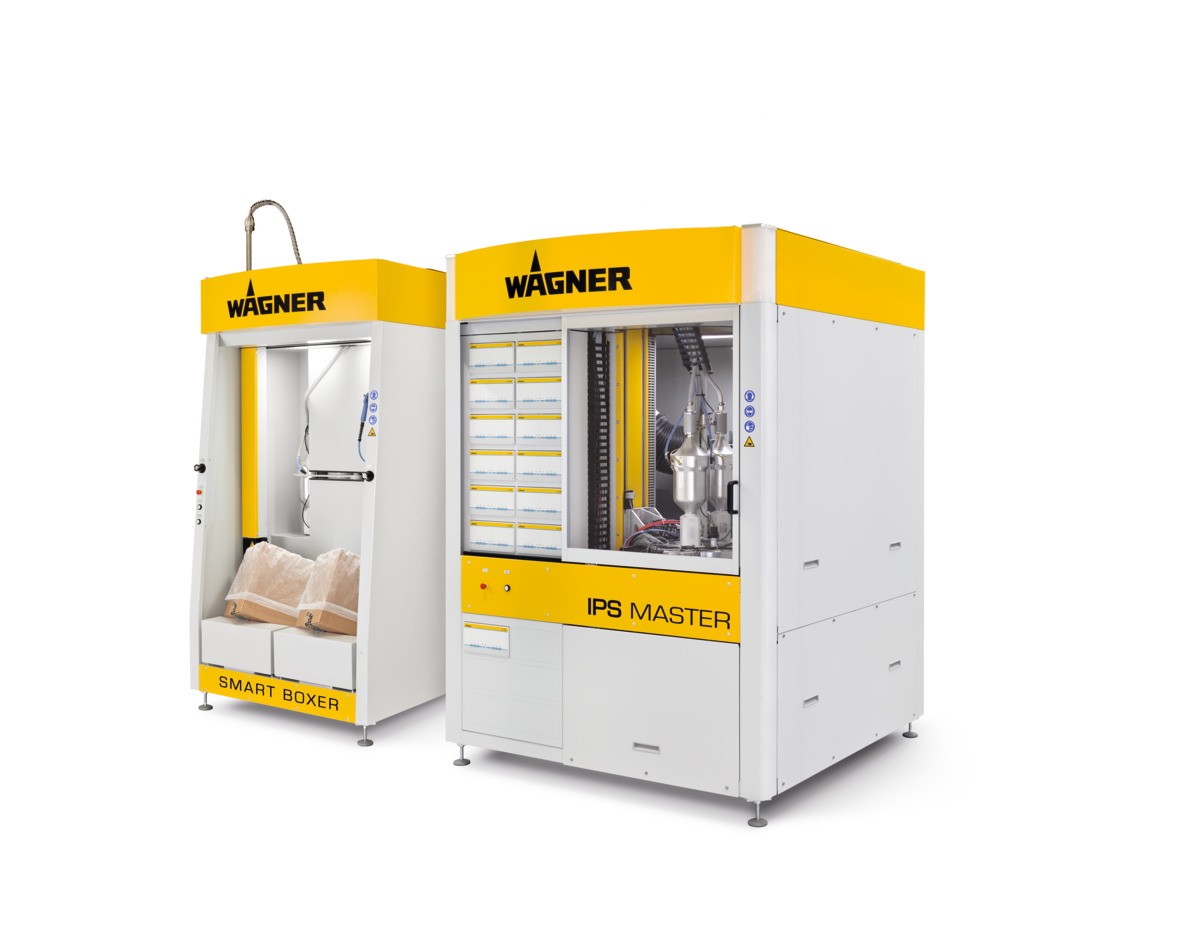

The IPS MASTER integrates powder preparation, feeding and dosing in a closed system, which contributes to a clean working environment. State-of-the-art powder preparation with ultrasonic screening for fresh and recirculated powder and a vibrated and fluidized container result in a very high degree of coating purity.
The innovative dosing of fresh and recovered powder without kinetic energy (Soft Flow Feeding) allows a gentle introduction of the powder into the fluid container. Wear and maintenance costs are thus significantly reduced.
| Application technique | Corona, Tribo, Automatic coating |
|---|---|
| Processable materials | Organic powder coatings |
| Dimensions | 2,000 x 2,900 x 3,200 mm |
| Weight | 1,700 kg |
| Air inlet pressure | 6.5-8 bar |
| Max. Powder Output per Gun | 400 g/min |
| Air consumption | 160-550 Nm³/h |
| Control Platform | WICOS.Plus |
| System Control | Yes |
| User Interface | 15.6" touchscreen (single-touch) |
| Additional user interfaces | 2. Touchscreen (optional), 3. Touchscreen (optional) |
| IoT platform | COATIFY |
| Feeding Technology | Smart Feeding Technology (SFT) |
| Material Preperation | fluidization, Vibration, Ultrasonic sieve |
| Material Supply | Powder carton, BigBag |
| Gun supply | Work tank |
| Level monitoring | Variable level measurement |
| Lighting | Variable lighting, depending on operating mode |
