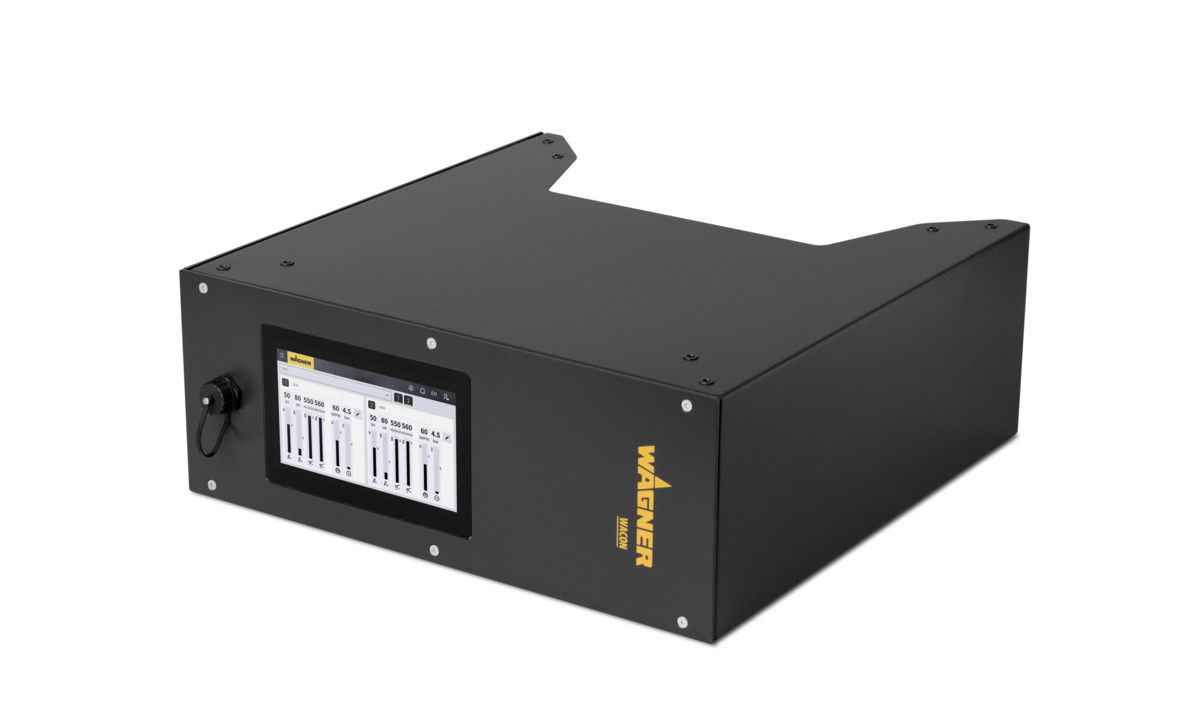

The WACON Spray is a modular control unit for controlling high-speed rotation atomizers.
The WACON Spray basic unit is the central control unit for a modular bell control system. Equipping it with WAMOD slide-in modules or WACAS external function modules determines the controllable range of functions and the number of high-speed atomizers to be controlled. The high-resolution 7" touch display makes the device clear and intuitive to use. The flexible design allows for different functionalities and integration into different system structures. Thanks to the modular interface concept, WACON Spray can be connected to higher-level control systems (PLC, robot controllers etc.) via various fieldbuses or analog and digital inputs and outputs.
Possible variants: TF Bell 1S / RobotBell 1, TF Bell 2S / RobotBell 2, TF Bell 1S ECH / TF RobotBell 1 ECH
Transferable recipes between different systems. No loss of performance when changing hoses. Tolerant to changing bending radii, e.g., in robot operation.
High-resolution 7" color display. Clear and concise presentation. Easy to operate even with gloves. Integrated recipe management.
Possible interfaces: WAGNER bus on ModBus RS 485 base, digital/analog interface, Profinet fieldbus
| Application technique | Rotation atomization, Automatic coating |
|---|---|
| Dimensions | 479 x 483 x 177.5 mm |
| Weight | 8.5 kg |
| Protection class | IP 54 |
| Amount of guns (automatic) | 1-4 |
