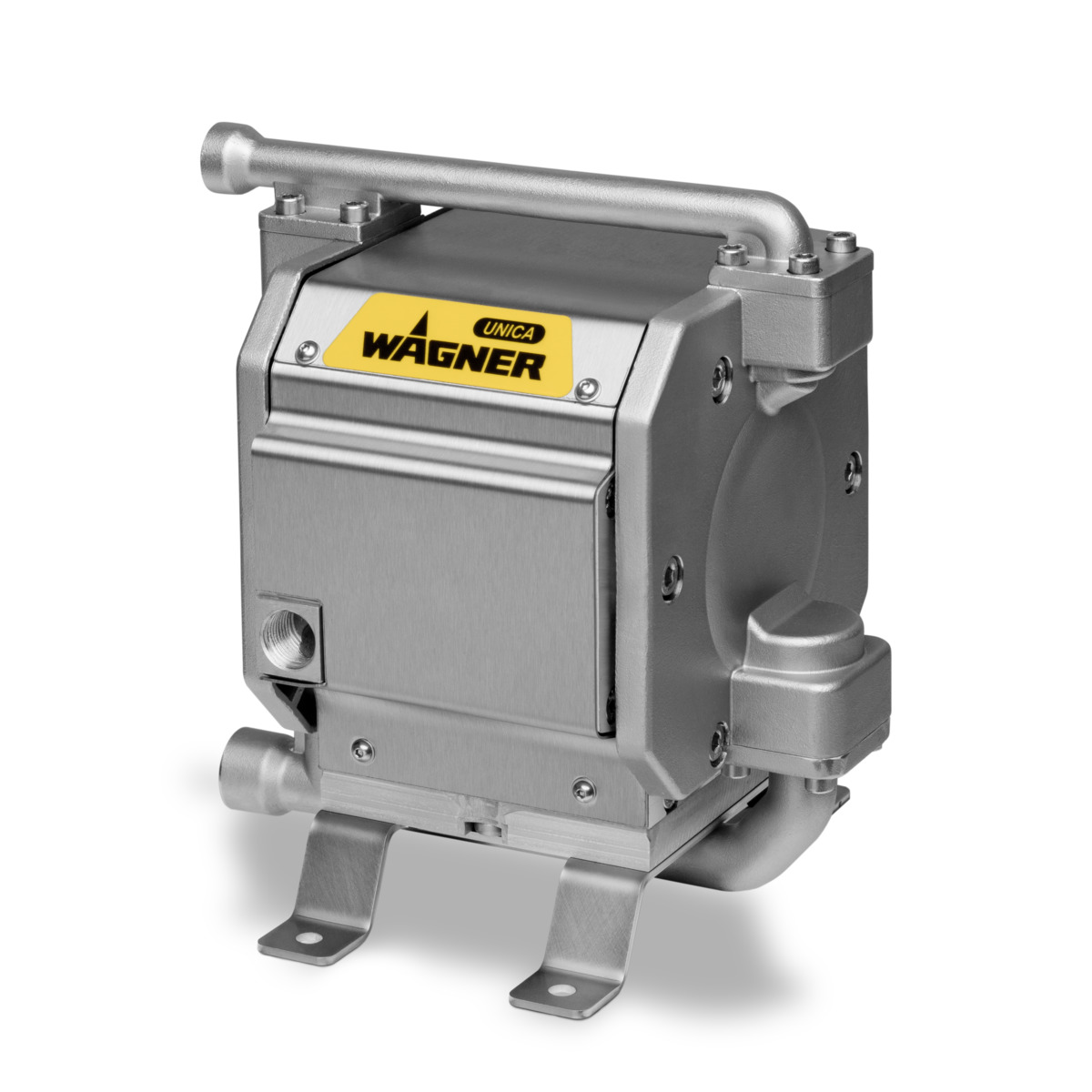

The powerful Unica double diaphragm pump for airspray applications enables high savings in material and resources.
Pneumatic double diaphragm pumps with pressure transmission for material pressures up to 20 bar. Ideal for feeding and supply of higher-viscosity material through long hose lines in circulation systems or stub-line airspray applications.
The pumps are suitable to feed even higher viscose material in higher volume. The pressure ration of 3:1 allows material pressure of 15 bar at 5 L/min. even with higher viscosity rates.
Due to the higher pressure, the diameter of the material hoses can be selected to be smaller. This means that there is significantly less unused material in circulation, saving costs, material and time when changing colors and rinsing.
In addition to its compact design, the Unica 3-125 is extremely robust and durable. Maintenance and service work can be carried out quickly and easily.
| Application area | Metal coating, Plastic coating, Wood coating |
|---|---|
| Application technique | Airspray |
| Processable materials | Solvent-borne, Water-borne, Abrasive, sensitive to moisture |
| Material Wetted Parts | Stainless steel, PTFE (polytetrafluoroethylene) |
| Material outlet | I G 3/4'' |
| Compressed air connection | I G 1/2'' |
| Air inlet pressure | 1.5-6 bar |
| Max. Material Pressure | 21 bar |
