The versatile airspray gun offers excellent atomization for small areas.

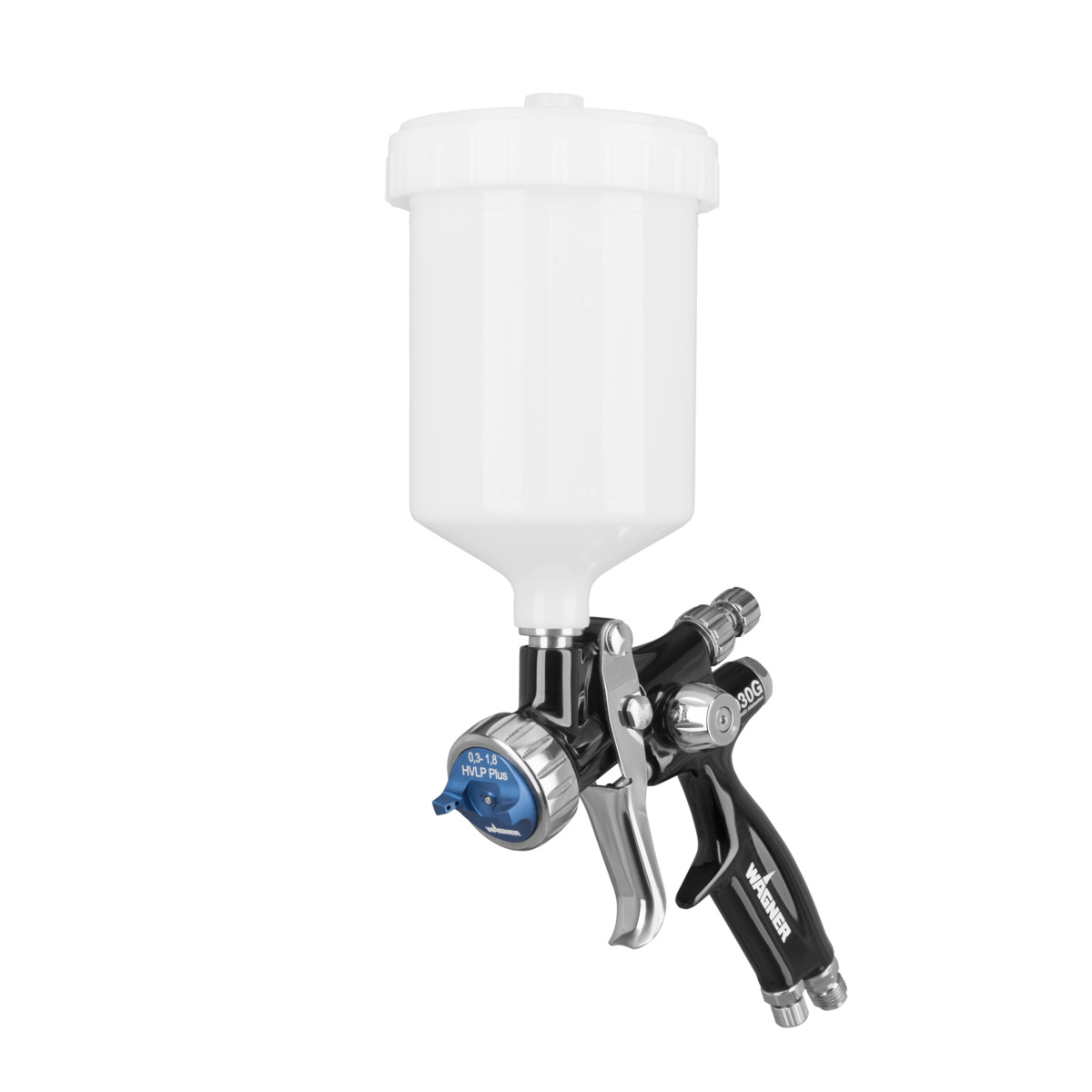

With its excellent atomization, the versatile TOPFINISH GM 1030G airspray gun delivers high-quality coating results, especially on smaller surfaces.
The gravity cup gun is ideal for small-area coating applications and touch-up work, such as in the wood, metal or plastics industries. Suitable for all material types as all wetted parts are made of stainless steel. High flexibility due to a wide range of nozzle sizes and air caps.
Transfer efficiency of up to 88%. Excellent atomization quality and low paint mist thanks to optimized air duct and 12-hole air distribution nozzle.
Individual and precise material flow with fixable needle stroke adjustment. Large material and air passages of the components allow very fast working.
Due to the two-part nozzle, it is sufficient to replace only the nozzle head instead of the complete nozzle, if necessary. Long-life needle packings and solvent-resistant polyethylene seals contribute to high availability.
Easy positioning of the air cap without loosening the screw ring. Individual adjustment of the spray jet width with just one rotary knob - from flat to round jet. Fatigue-free working thanks to ergonomic design and optimum weight distribution.
| Application area | Metal coating, Plastic coating, Wood coating, Adhesive bonding |
|---|---|
| Application technique | Airspray - Conventional, Airspray - HVLP, Airspray - HVLP-Plus, Manual coating |
| Processable materials | Water-borne, Solvent-borne |
| Material Wetted Parts | Stainless steel |
| Dimensions | 130 x 180 x 50 mm |
| Weight | 419 g |
| Compressed air connection | M G 1/4'' |
| Max. Sound Level | 84.1 dB(A) |
| Nozzle size | 1-2.2 mm |
