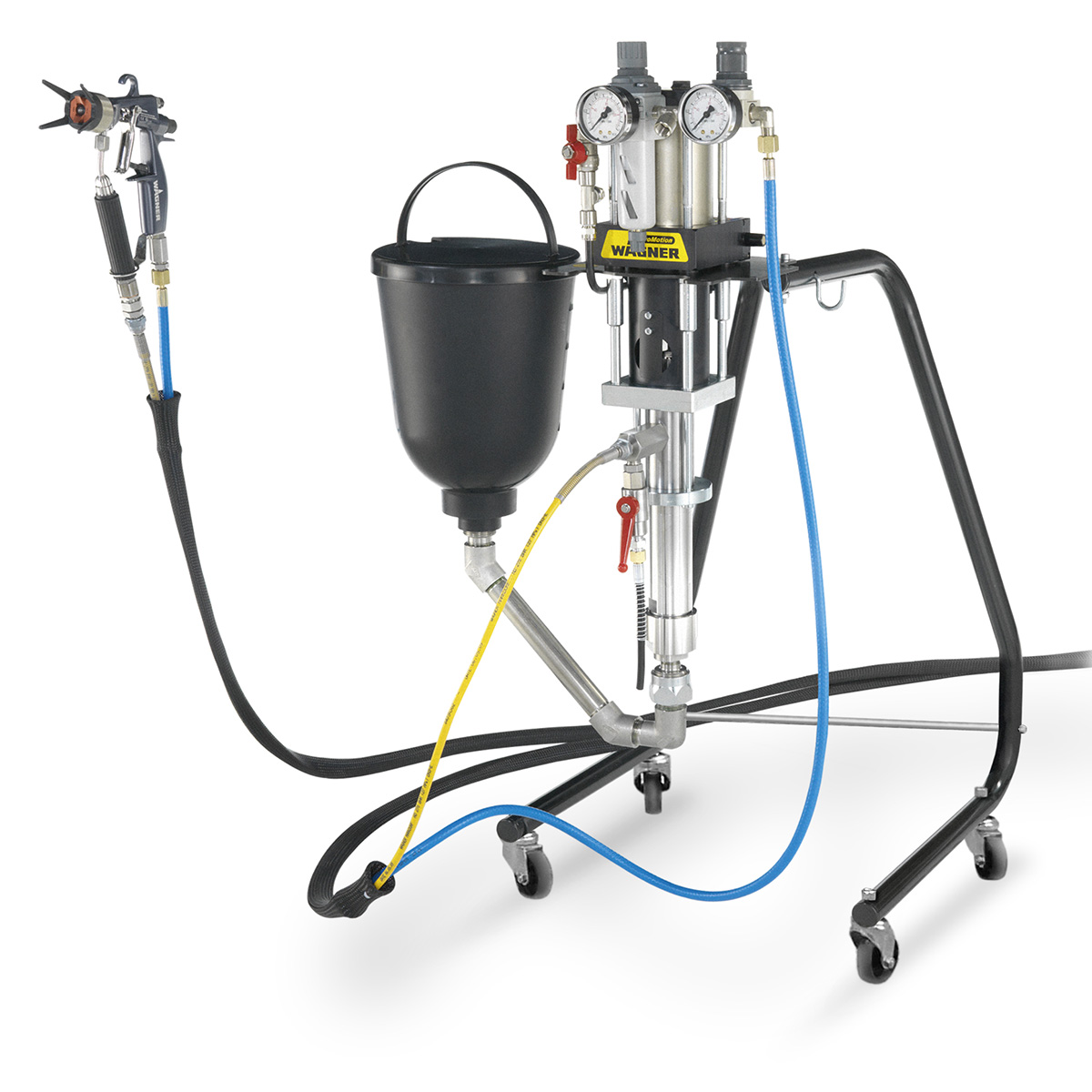

FineFinish 20-30 S (AC)

Overview

With AirCoat technology: Particularly fine atomisation for a perfect finish
Compact and lightweight: Ideal for small painting jobs
Flexible: Optionally available with hopper for handling small material quantities or with direct intake for medium-sized projects.
Suitable for use in potentially explosive atmospheres
FineFinish 20-30 S (AC) is optionally available as a four-legged model (2309802).

Technical data

Technical data
Article number	2309799
MATERIALS HANDLED	Enamels, primers, varnishes, impregnations
PRICE CATEGORY (CAT. 1-5)	Category 1
MAX. NOZZLE SIZE	at 15 Mpa: 0.019"
MAX. DELIVERY RATE	at 12 MPa 1.8 l/min
MAX. OPERATING PRESSURE	16 MPa
WEIGHT	11kg
POSSIBLE SUCTION SYSTEMS (ACCESSORIES MAY BE REQUIRED)	Rigid suction system/ hopper
DRIVE	Pneumatic
TECHNOLOGY	Piston pump
EXPLOSION PROTECTION	Yes
MULTIPLICATION RATIO	20:1
VOLUME FLOW PER DOUBLE STROKE	30 cm3
VOLUME FLOW (60 double strokes)	1.8 l/min
MAX. VOLUME WITH FREE OUTLET	9.8 l/min
AIR INLET PRESSURE	0.8 MPa
AIR CONSUMPTION PER DOUBLE STROKE AT 0.6 MPa	3.9 nl
SOUND PRESSURE LEVEL AT 0.6 MPa AIR INLET PRESSURE	74 db(A)
