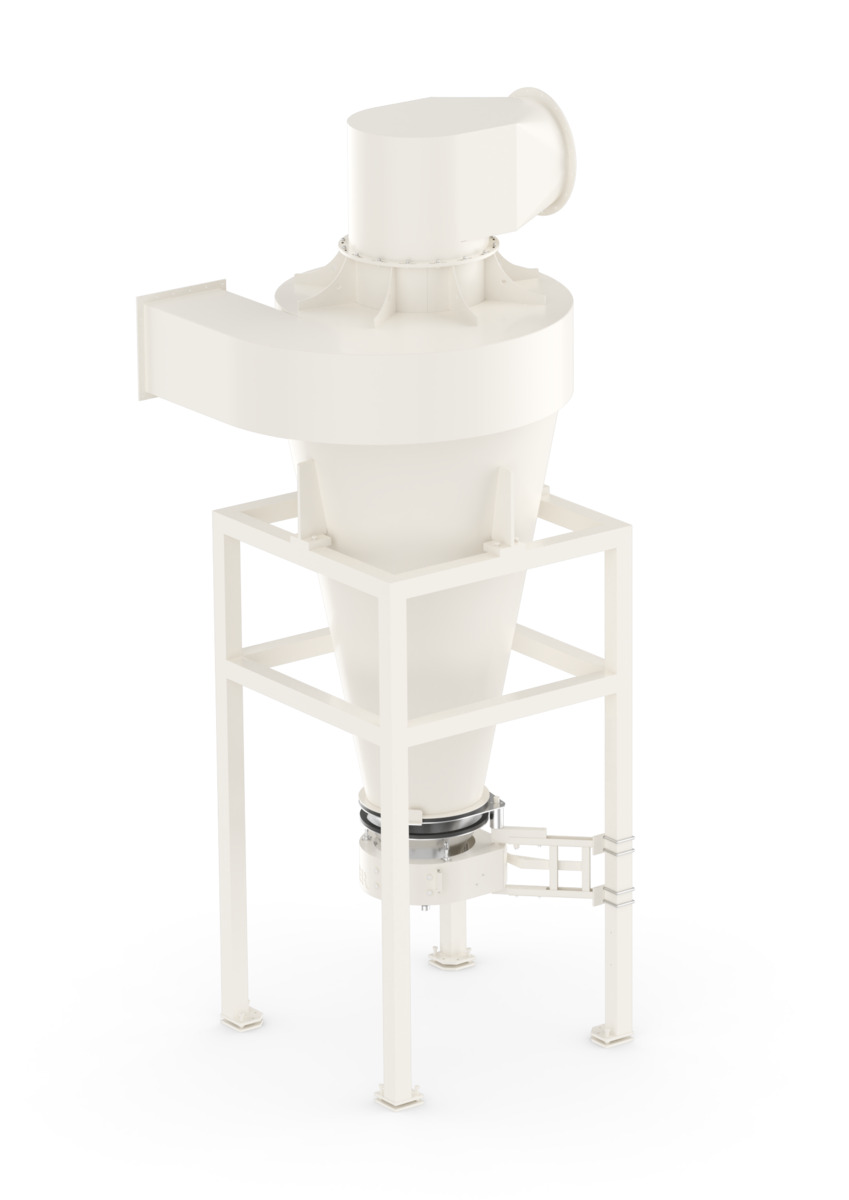

Monocyclone EEP

Name: Monocyclone EEP
Brand: WAGNER

Powder recovery system

The highly efficient monocyclone separates the extracted powder/air mixture in automatic booths. The special design results in lower pressure losses and therefore considerable energy savings.

Overview

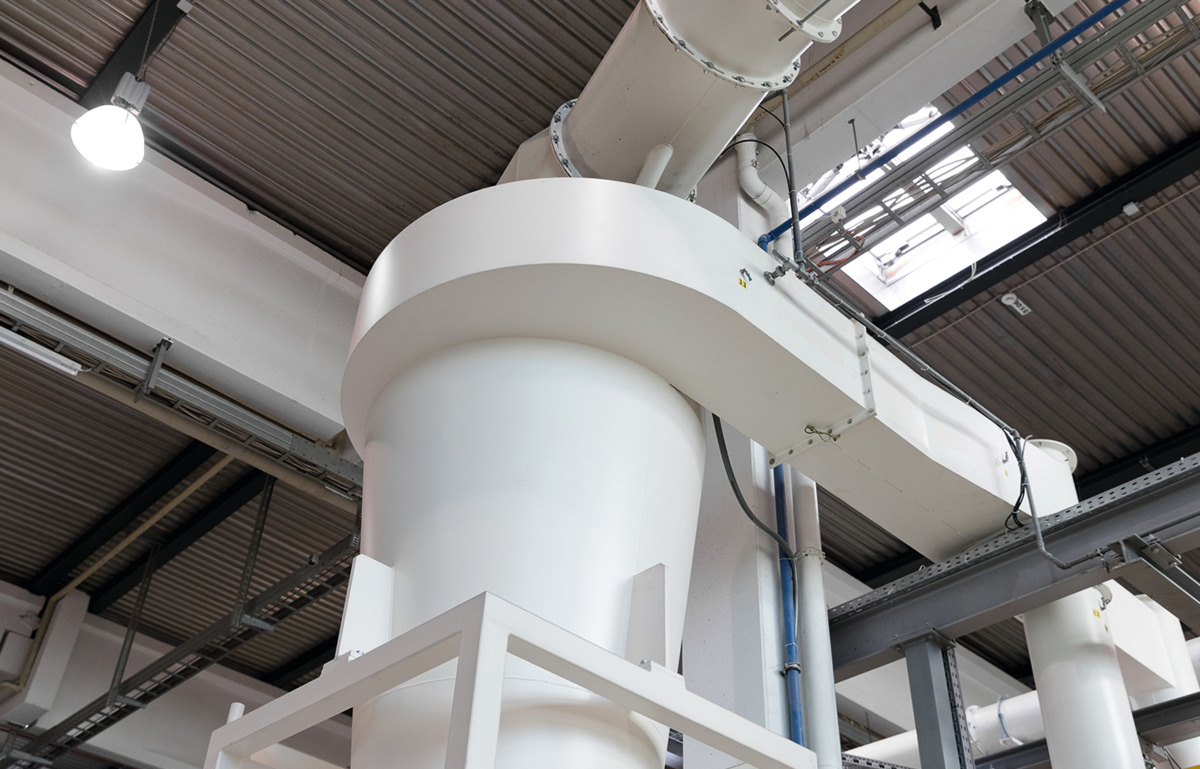

The highly efficient WAGNER monocyclone is used with automatic booths for color change systems. It separates the extracted powder/air mixture. The exhaust air passes through a pipe to the afterfilter and the powder is sieved and returned to the guns. Due to the flow-optimised design, considerably lower pressure losses are achieved than with conventional systems, which allows savings of up to 40% of the energy requirement (motor power) of the afterfilter.

You can find more information on the Energy Efficiency Package (EEP) here.

Benefits

Excellent coating results

Low powder waste. Due to the flow-optimized design, significantly lower pressure losses are achieved than with conventional systems, which allows savings of up to 40% of the energy requirement (motor power) of the afterfilter.

High safety

Cyclone funnel with 2-hand operation. Meets the safety requirements.

Sieve can be swiveled out

Protection of the circulation pump against dirt and foreign substances.

Technical data

Technical data
Processable materials	Organic powder coatings
Weight	1,150 kg
Air inlet pressure	6-8 bar
Suction power	12,000-24,000 Nm³/h
Operating temperature	5-40 °C
