Wildcat 18-40

Name: Wildcat 18-40
Brand: WAGNER

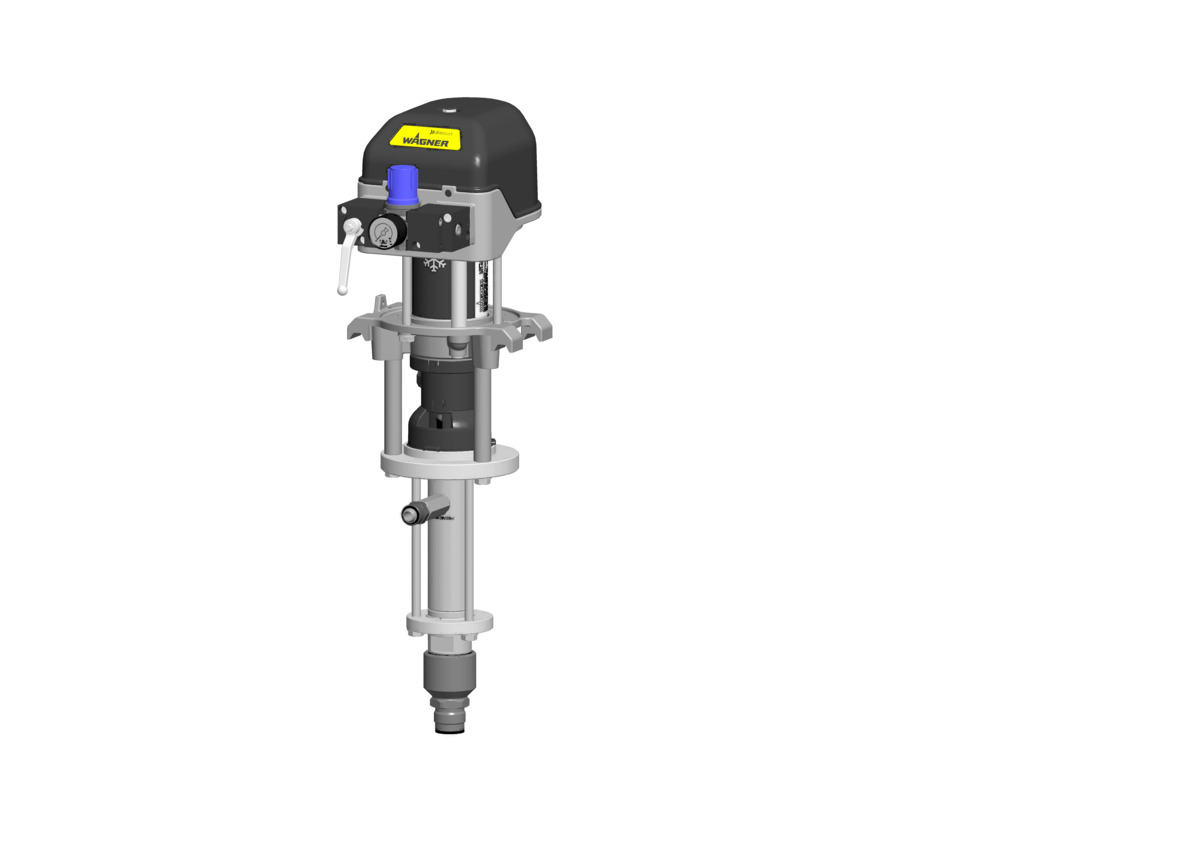

High-pressure piston pump

The Wildcat 18-40 high pressure piston pump can be used for AirCoat applications with up to 140 bar and a gun.

Overview

High pressure piston pump, stainless steel, for AirCoat applications up to 140 bar and 2.4 l/min. Ideal for e.g. professional individual painting stations in production and workshops.

Benefits

Reliable

A constantly uniform material flow with particularly low pulsation ensures optimum coating results. The intelligent design of the air motor reliably prevents power losses due to icing.

Easy handling

All operating elements are ergonomically integrated in the compact maintenance unit. This ensures easy adjustment and operation of the pump.

Easy to maintain

The easily accessible separating agent chamber, easy-to-replace packs, and the ability to disassemble the paint section for maintenance purposes independently of the air motor significantly reduce maintenance requirements and service times.

Flexible applications

The paint section is completely made of stainless steel and is suitable for processing both solvent-based and water-based materials.

Technical data

Technical data
Application area	Metal coating, Wood coating
Application technique	AirCoat
Processable materials	Water-borne, Solvent-borne, Base material & catalysts, Pre-mixed 2K material, sensitive to moisture
Material Wetted Parts	Stainless steel, Hard chrome, Carbide, PE (polyethylene), PTFE (polytetrafluoroethylene)
Weight	15 kg
Material outlet	M M24x1,5
Compressed air connection	I G 1/2''
Air inlet pressure	2.5-8 bar
Max. Material Pressure	144 bar
Volumetric flow per double stroke	40 cm³
Volumetric Flow per Minute	2.4 l/min
Max. Stroke Rate	60 1/min
Sound level at 6 bar air pressure	74 dB(A)
Max. Allowed Inclination	10 °
Transmission ratio (:1)	18 :1
Material pH value	3.5-9 pH
Material temperature	5-80 °C
