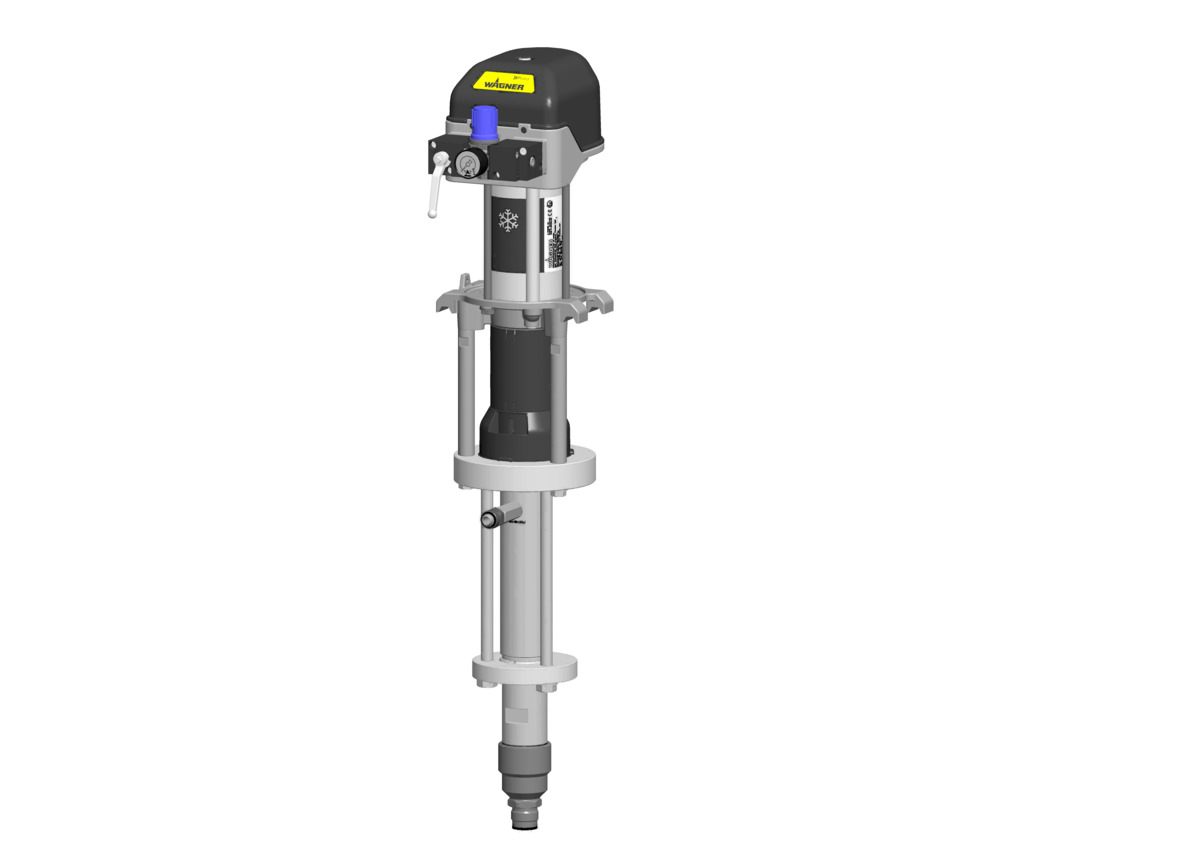

    High-pressure piston pump

    Puma 21-110

    High-pressure piston pump

    The Puma 21-110 high-pressure piston pump can be used for AirCoat applications with up to 168 bar and multiple guns.

    Contact us
    Overview
    Overview
    Benefits
    Technical data
    Customer references
    Downloads
    Contact us

    Overview

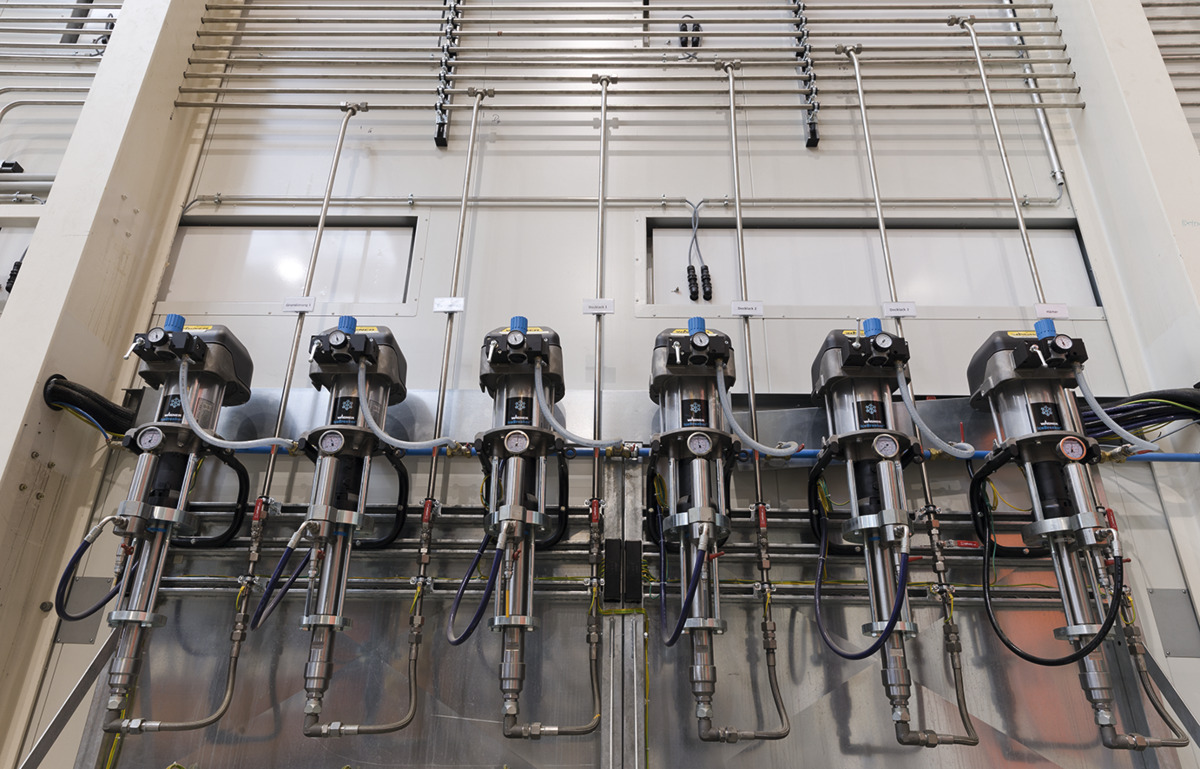

    High pressure piston pump, stainless steel, for AirCoat applications up to 168 bar and 6.6 l/min. Ideal e.g. for multi-gun use in flatbed machines.

    Benefits

    Benefit Checkmark

    Reliable

    A constantly uniform material flow with particularly low pulsation ensures optimum coating results. The intelligent design of the air motor reliably prevents power losses due to icing.

    Benefit Checkmark

    Easy handling

    All operating elements are ergonomically integrated in the compact maintenance unit. This ensures easy adjustment and operation of the pump.

    Benefit Checkmark

    Easy to maintain

    The easily accessible separating agent chamber, easy-to-replace packs, and the ability to disassemble the paint section for maintenance purposes independently of the air motor significantly reduce maintenance requirements and service times.

    Benefit Checkmark

    Flexible applications

    The paint section is completely made of stainless steel and is suitable for processing both solvent-based and water-based materials.

    Technical data

    Application areaMetal coating, Wood coating, Demolding and separating, Adhesive bonding
    Application techniqueAirCoat
    Processable materialsWater-borne, Solvent-borne, Abrasive, sensitive to moisture
    Material Wetted PartsStainless steel, Hard chrome, Carbide, PTFE (polytetrafluoroethylene), PE (polyethylene)
    Weight28 kg
    Material outletM M24x1,5
    Compressed air connectionI G 1/2''
    Air inlet pressure2.5-8 bar
    Max. Material Pressure168 bar
    Volumetric flow per double stroke110 cm³
    Volumetric Flow per Minute6.6 l/min
    Max. Stroke Rate60 1/min
    Sound level at 6 bar air pressure74 dB(A)
    Max. Allowed Inclination10 °
    Transmission ratio (:1)21 :1
    Material pH value3.5-9 pH
    Material temperature5-80 °C

    Certifications

    certificate ce
    certificate ex
    customer reference image

    Customer references

    Examples from various industrial sectors show you how our products and solutions for liquid coating are used in practice.
