GM 5000EA

Name: GM 5000EA
Brand: WAGNER

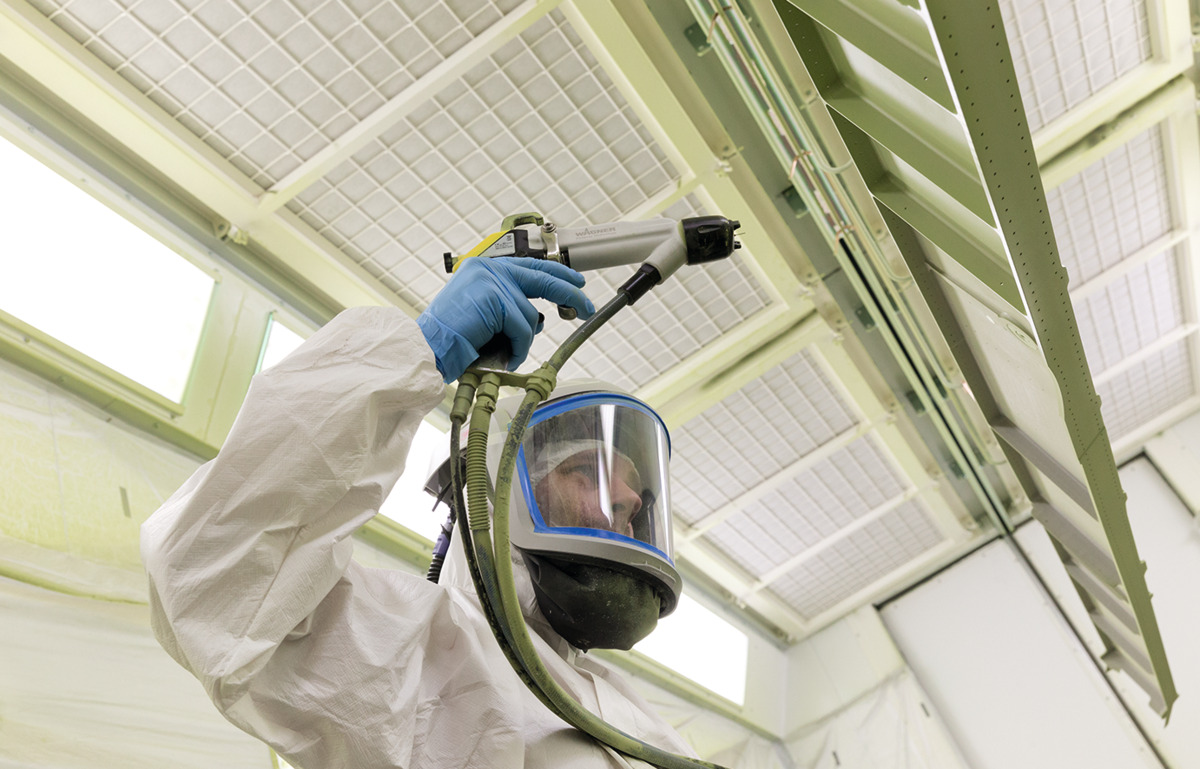

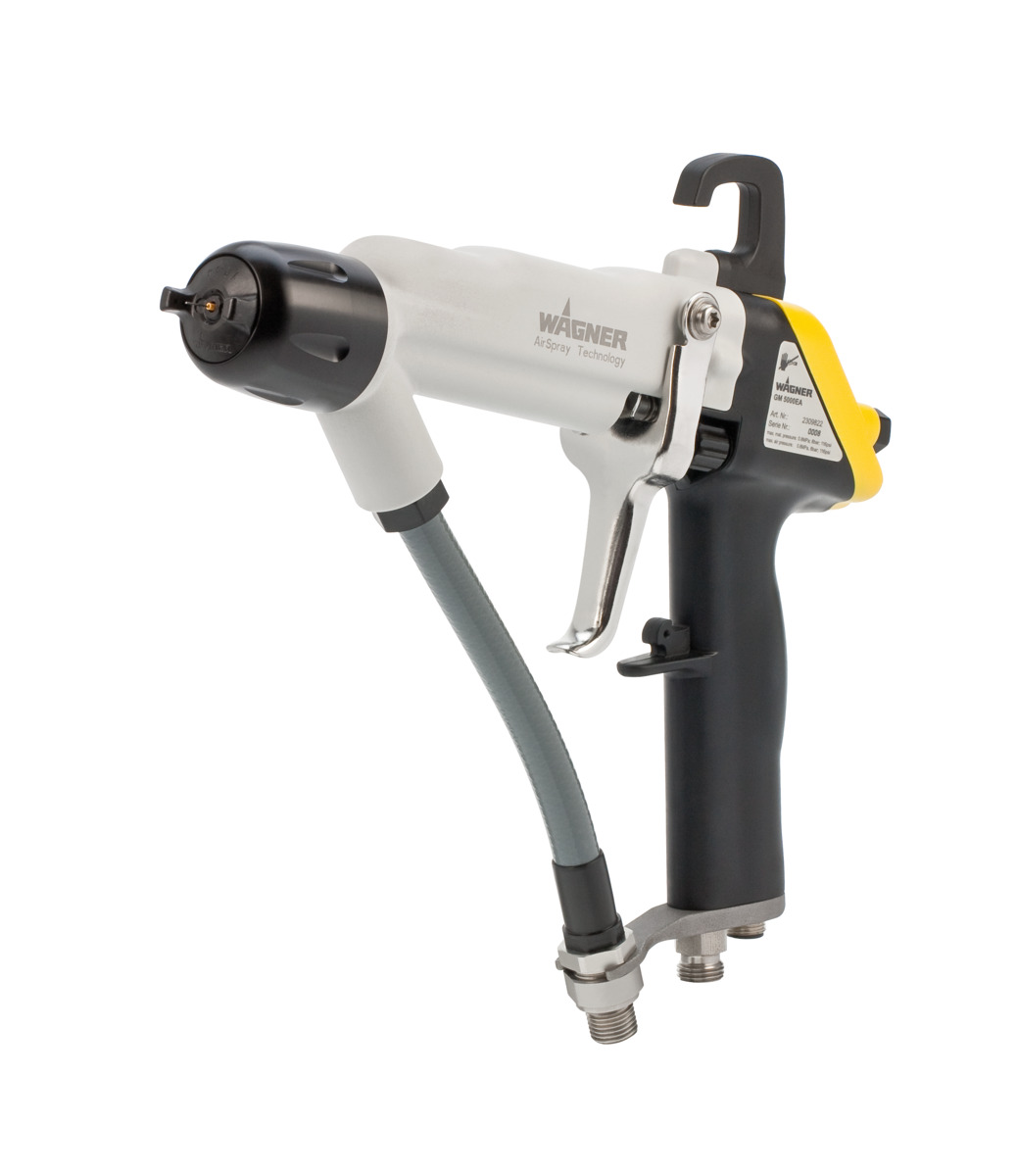

Electrostatic airspray manual gun

Electrostatic manual guns are particularly robust, offer a high level of operating comfort and enable ergonomic working.

Overview

Electrostatic manual gun for airspray applications with low conductive solvent paints. With built-in high-voltage cascade. Additionally required: VM 500 or VM 5000 control unit.

Benefits

Excellent coating results

The GM 5000 automatic guns offer a soft and homogeneous spray jet for high coating quality and outstanding application efficiency. Typically, 30-50% of material can be saved compared to conventional coating processes.

Flexible applications

Harsh environment, intensive use, different spray materials and much more: that's what the GM 5000 series was designed for. The exchangeable hook ensures low service costs.

Side fins for safety

The GM 5000 gun series complies with CE and Atex zone 1 standards. For maximum safety of the painter, the grounding of the gun is monitored by the control unit. It automatically disconnects the high voltage as soon as the grounding is interrupted.

High surface quality

Innovative nozzles and air caps, specially developed for the perfect combination of optimum droplet size with electrostatic charge for particularly high coating performance and quality.

Strong Performance

The material is ionized by the extremely flexible and durable electrode directly at the material nozzle. Even under extreme loads it keeps its shape and ensures a constant material charge and good handling.

Technical data

Technical data
Application area	Metal coating, Plastic coating, Wood coating
Application technique	Airspray, Electrostatic solvent-based
Processable materials	Abrasive, shear sensitive, sensitive to moisture
Material Wetted Parts	Stainless steel, Carbide, PA 12 (polyamide 12), PEEK (Polyetheretherketone), POM-C (Polyacetal Copolymer)
Weight	630 g
Compressed air connection	M G 1/4''
Max. Material Pressure	8 bar
Material conductivity	18.5-123 MΩ.cm
Material conductivity LowR	6.2-123 MΩ.cm
Operating temperature	5-40 °C
