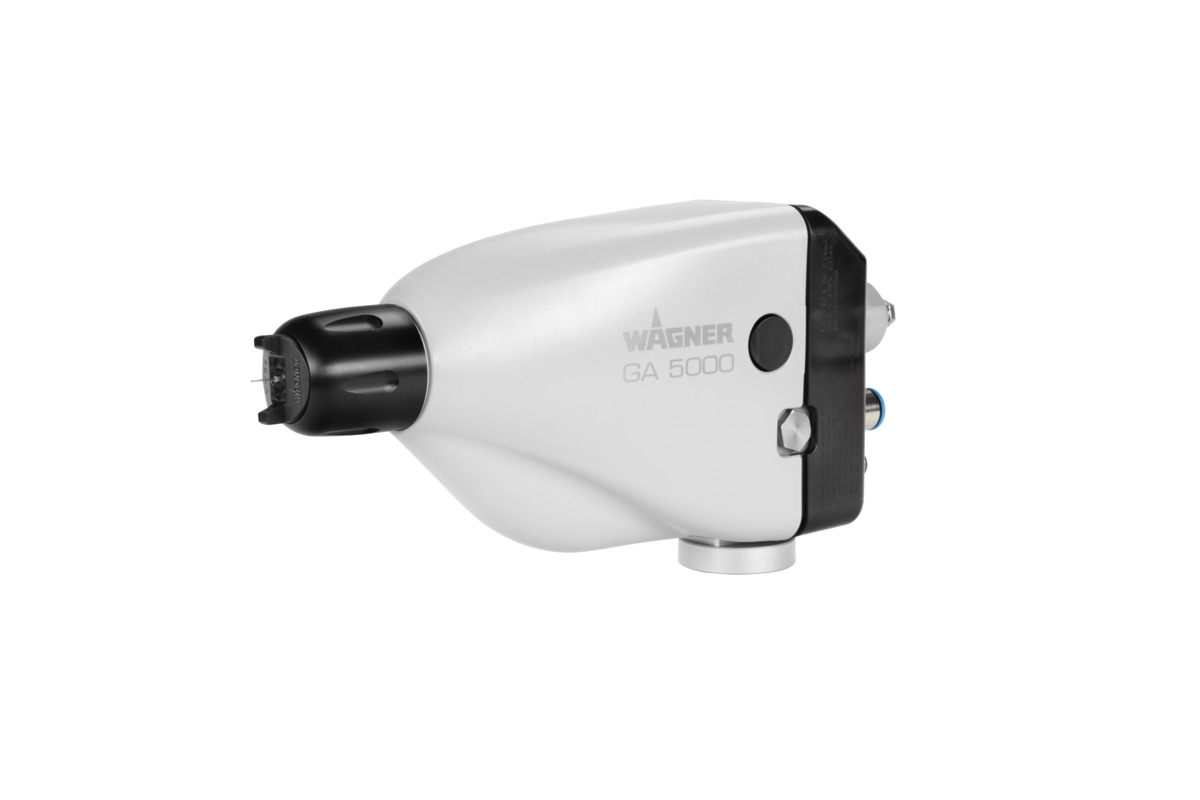

Electrostatic airspray automatic gun for solvent-based paints

GA 5000EA

Name: GA 5000EA
Brand: WAGNER

Electrostatic airspray automatic gun for solvent-based paints

The electrostatic automatic gun achieves a very high application efficiency and a high-quality surface finish.

Overview

Electrostatic automatic gun for low-pressure applications, internal or external control of the molding/atomizing air. For solvent-based paints.

Benefits

Excellent coating results

Up to 20 % less paint consumption. Up to 20 % higher application efficiency compared to comparable products thanks to the high-performance cascade.

High surface quality

The extremely homogeneous atomization thanks to the smallest droplet sizes minimizes the number of rejects.

Easy to maintain

The quick-change nozzle allows easy replacement and flushing of the nozzle without switching off the material and compressed air. For minimal interruptions in the production process.

Air control as internal and external version

For experienced operators it is often faster and easier to adjust the forming and atomizing air on the spray gun. The IC (internal air control) versions have an adjusting screw for this purpose. For more precise and reproducible air settings, the EC versions (external air control) can be used. The air options are set via the EPG 5000.

Technical data

Technical data
Application area	Metal coating, Plastic coating, Wood coating
Application technique	Airspray, Electrostatic solvent-based
Processable materials	1K solvent-based primers, 1K solvent-based paints, 2K solvent-based primers, Solvent-based paints (2K, 3K and 4K), Solvent-based separating agents
Material Wetted Parts	Stainless steel, Carbide, PA 12 (polyamide 12), PEEK (Polyetheretherketone), POM-C (Polyacetal Copolymer)
Dimensions	272 x 74 x 135 mm
Weight	1,200 g
Max. Material Pressure	8 bar
Max. Sound Level	73 dB(A)
Material conductivity	18.5-123 MΩ.cm
Material conductivity LowR	6.2-123 MΩ.cm
Nozzle size	0.3-2 mm
Operating temperature	5-40 °C

Certifications

Customer references

Examples from various industrial sectors show you how our products and solutions for liquid coating are used in practice.

Learn more
