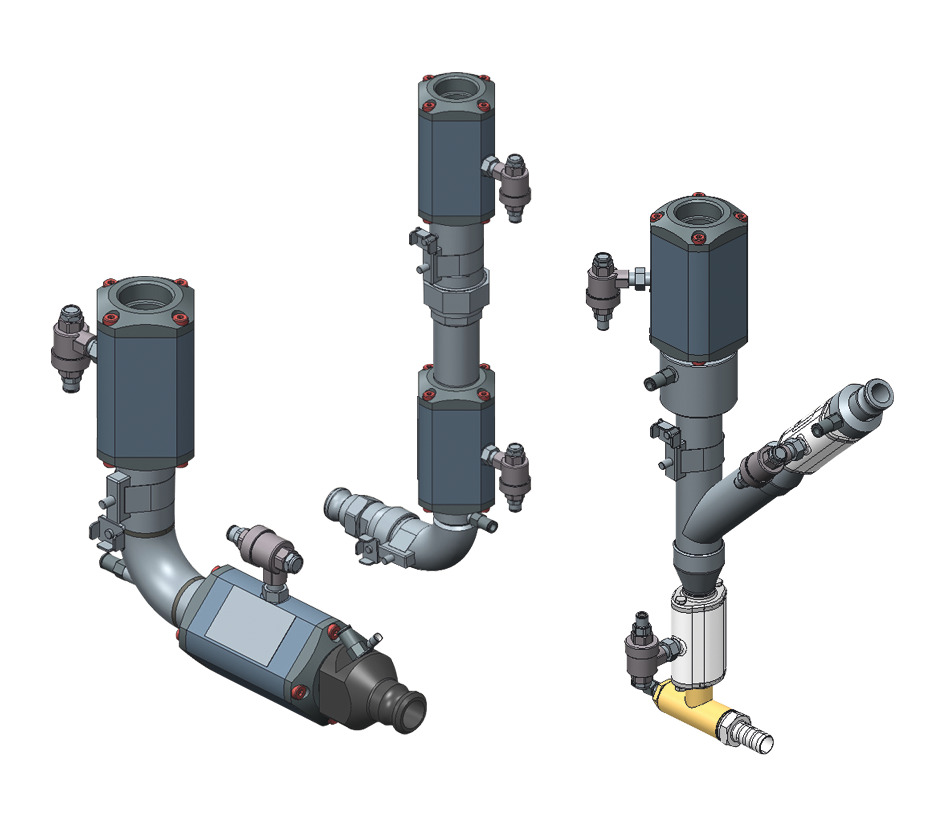

The peristaltic feeding system is used for intermediate or return conveying of powder, for example when changing colors to return the overspray to a powder center.
The peristaltic feeding system is used for low-air intermediate or return conveying of coating powders by means of alternating pinch valves. Powder quantities of up to 4.5 kg/min can be conveyed. The system is often used in color change systems to return the overspray powder to a powder center. The special Y version has one outlet each for reused powder and for automatic disposal into a waste container.
The design of the feeders allows even large feeding capacities at low investment costs.
The low-wear feeding technology reduces the maintenance effort considerably.
The low-wear feeding technology reduces the maintenance effort considerably.
The low-air feeding with low dust generation reduces energy costs.
| Processable materials | Organic powder coatings |
|---|---|
| Air inlet pressure | 6-8 bar |
| Protection class | IP 55 |
| Max. Delivery Height | 3.5 m |
| Max. Delivery Distance | 20 m |
