M-Line system

Name: M-Line system
Brand: WAGNER

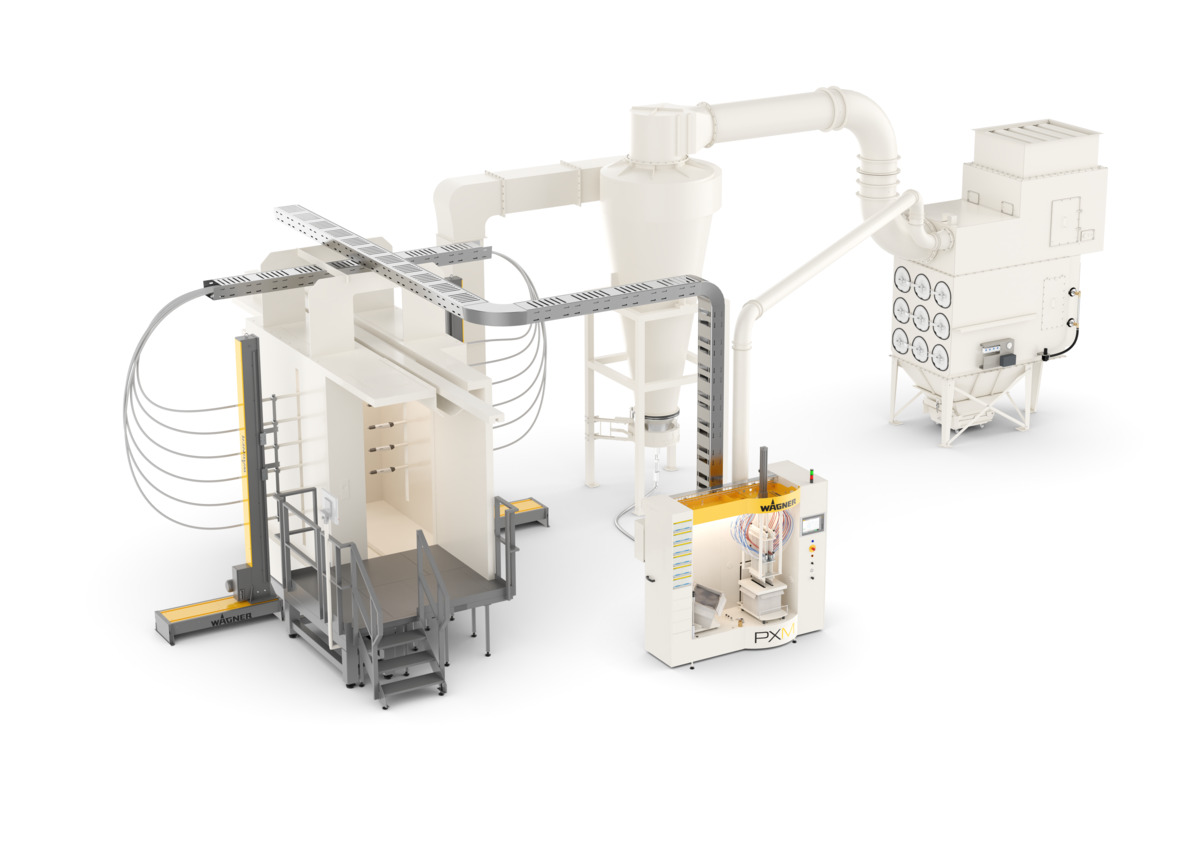

Powder complete system

The M-Line system extends the functionalities of the E-Line Plus system and is ideal for very large workpieces. Advantages include the possibility to use Flowsense, an integrated ultrasonic sieving and highly automatic color change processes.

Overview

M-Line powder coating systems enhance the functional features of E-Line Plus systems and offer components and flexible configuration options for demanding coating tasks, also in case of big workpieces. High requirements on productivity, process efficiency and color change capability can be fulfilled with M-Line configurations. The PXS powder center ensures highest coating quality by its integrated ultrasonic sieve and enables a high automation degree of the color change process.

Further information on our complete powder systems can be found here.

Benefits

High coating quality

Above-average application results thanks to robust and powerful PEA-X1 automatic guns, high-precision EPG-S2 gun control units with active air volume control, and motion systems with maximum precision and repeatability.

Efficient powder suction

Coating-neutral air flow for higher application efficiency due to special PVC booth design with double-sided exhaust system.

High application efficiency with reduced powder consumption

Automatic activation/deactivation of the powder output during the coating process by the intelligent gap and height control.

Convenient and powerful system control

Comfortable WICOS system control (powder center, motion system, application, booth, filter) with 15.6" touchscreen integrated in the powder center offers additional standardized data interfaces, automation functions and particularly easy handling of the extended range of functions compared to the E-Line system.

Low energy consumption

High energy efficiency of the recovery system thanks to the patented WAGNER EEP concept. By using a special design for the suction tubes and the monocyclone, the overall energy consumption of the system can be minimized.

Optimized energy consumption during system operation

Reduced system energy consumption through the Energy Efficiency Package Plus, which automatically pauses or throttles operation of system components in component gaps.

Excellent powder preparation

By selecting the PXS powder center with a fully integrated ultrasonic sieve, the powder is prepared in the best possible way for a high-quality coating.

High coating performance of the complete system

Automatic coating of large and complex components or alternatively with high conveyor speed for increased throughput possible using up to 36 guns.

Flexible integration of manual touch up positions

Different integration options for manual touch up incl. personnel lifting platforms.

Technical data

Technical data
Suction power	13,000-33,000 Nm³/h
Input power filter unit	18.5-55 kW
Control Platform	WICOS
System Control	Yes
User Interface	15.6" touchscreen (multi-touch)
Additional user interfaces	2. Touchscreen (optional)
IoT platform	COATIFY
Feeding Technology	Injector
Material Preperation	fluidization, Ultrasonic sieve, Vibration
Material Supply	Fluid tank, Powder carton
Flowsense	Optional
