IP 5000

Name: IP 5000
Brand: WAGNER

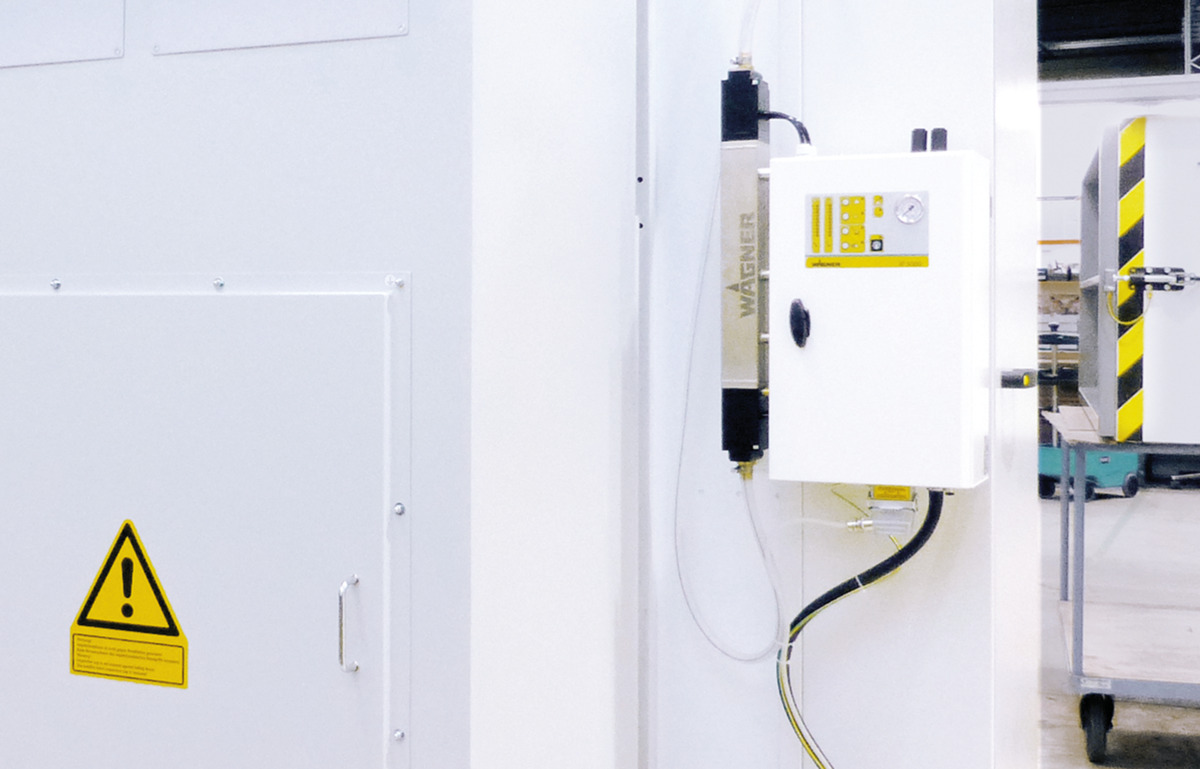

Dense flow feeding system

The IP5000 is used to convey fresh powder and can be easily integrated into the production process. It impresses with its simple operation, high feeding capacity and automatic cleaning program.

Overview

IP5000 is a feeding system for low-air feeding of large powder quantities. It can convey powder quantities of up to 5kg/min with low dust generation. It has an integrated service interval display, which almost eliminates unplanned production interruptions. An automatic flushing and cleaning program is integrated for safe and quick color change.

Benefits

Rapid paint changes

Simple operation without multiple assignment of the keys. The automatic cleaning program for the suction and feeding direction as well as the adjustable flushing function allow quick color changes.

Excellent coating results

Four pre-set and freely programmable recipes for flat and complex parts as well as for recoating save time-consuming manual adjustments of the electrostatics. The active service interval display with residual run indicator ensures optimum maintenance procedures.

Reliable

The pump enables high flow rates with low air consumption. Long feeding distances of up to 50 meters can be handled without problems.

Strong Performance

The basis for the constant and high feeding capacity is the combination of vacuum and dense flow feeding.

Flexible applications

Feeding can be done directly from the box, from 200-liter drums or the BigBag. IP 5000 is also suitable for emptying after-filter containers and can be optimally integrated into the production process for feeding between powder stocks.

Technical data

Technical data
Processable materials	Organic powder coatings
Dimensions	202 x 385 x 760 mm
Air inlet pressure	6-8 bar
Max. Delivery Height	5 m
Max. Delivery Distance	50 m
Max. Delivery Rate in Operation	5,000 g/min
